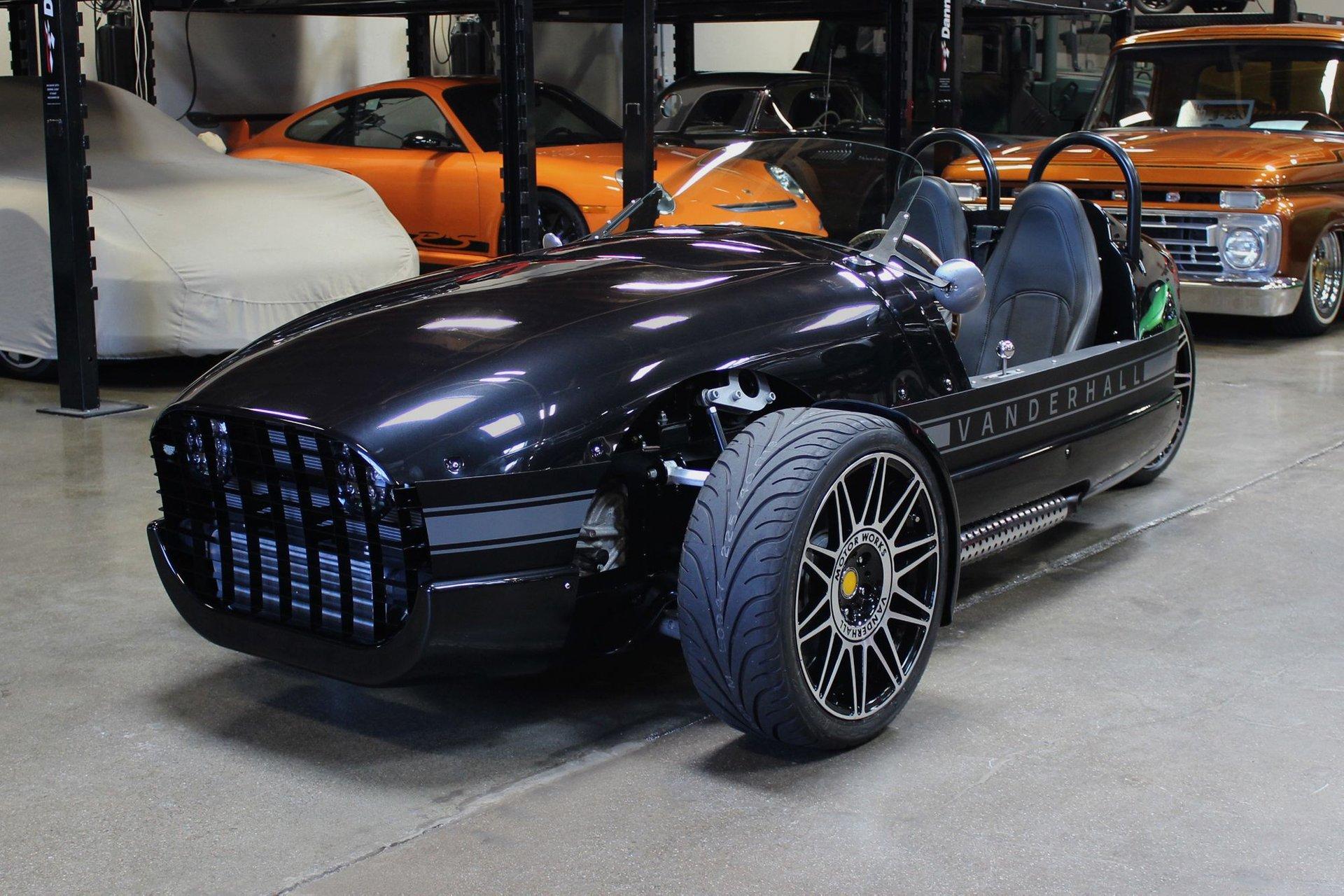

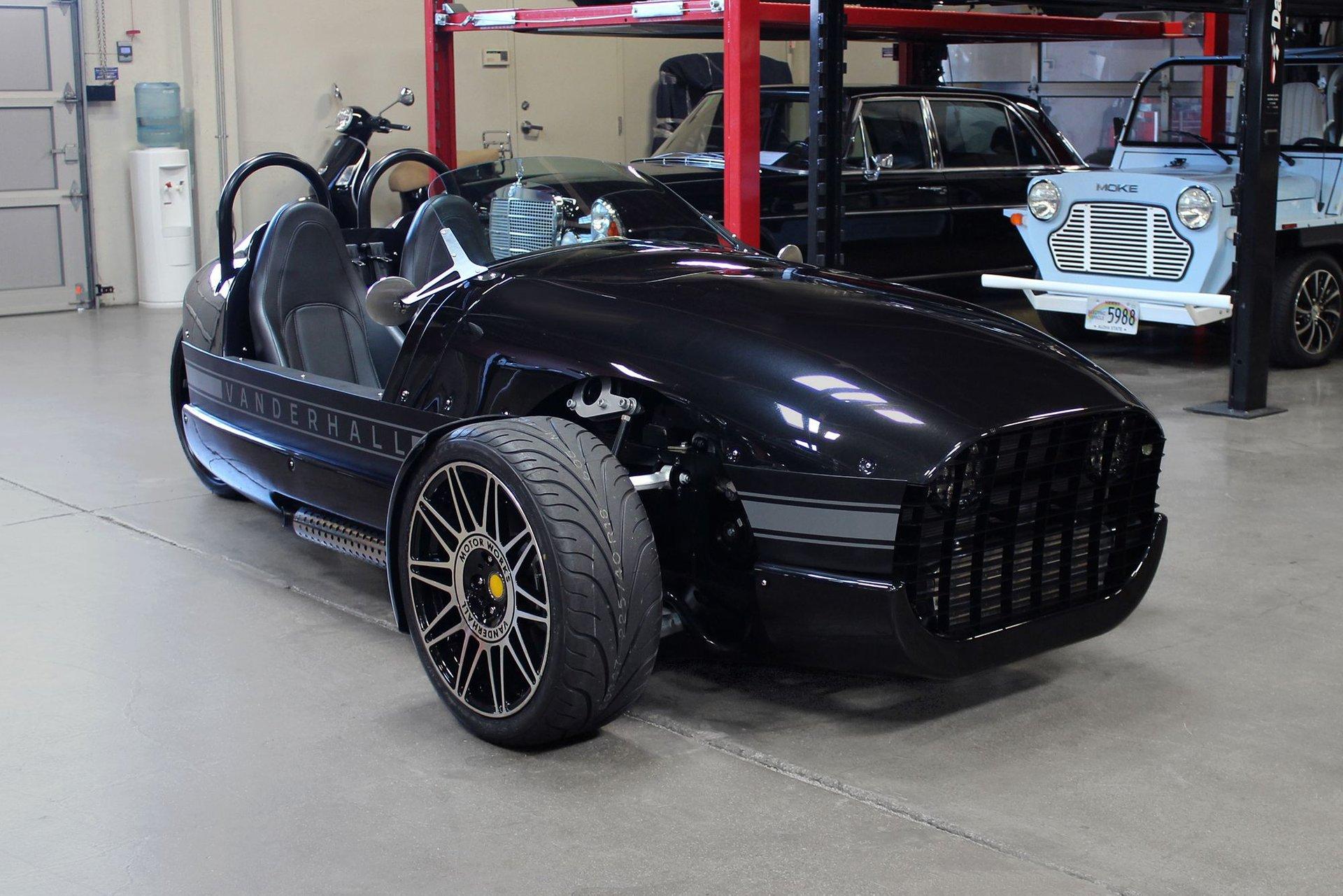

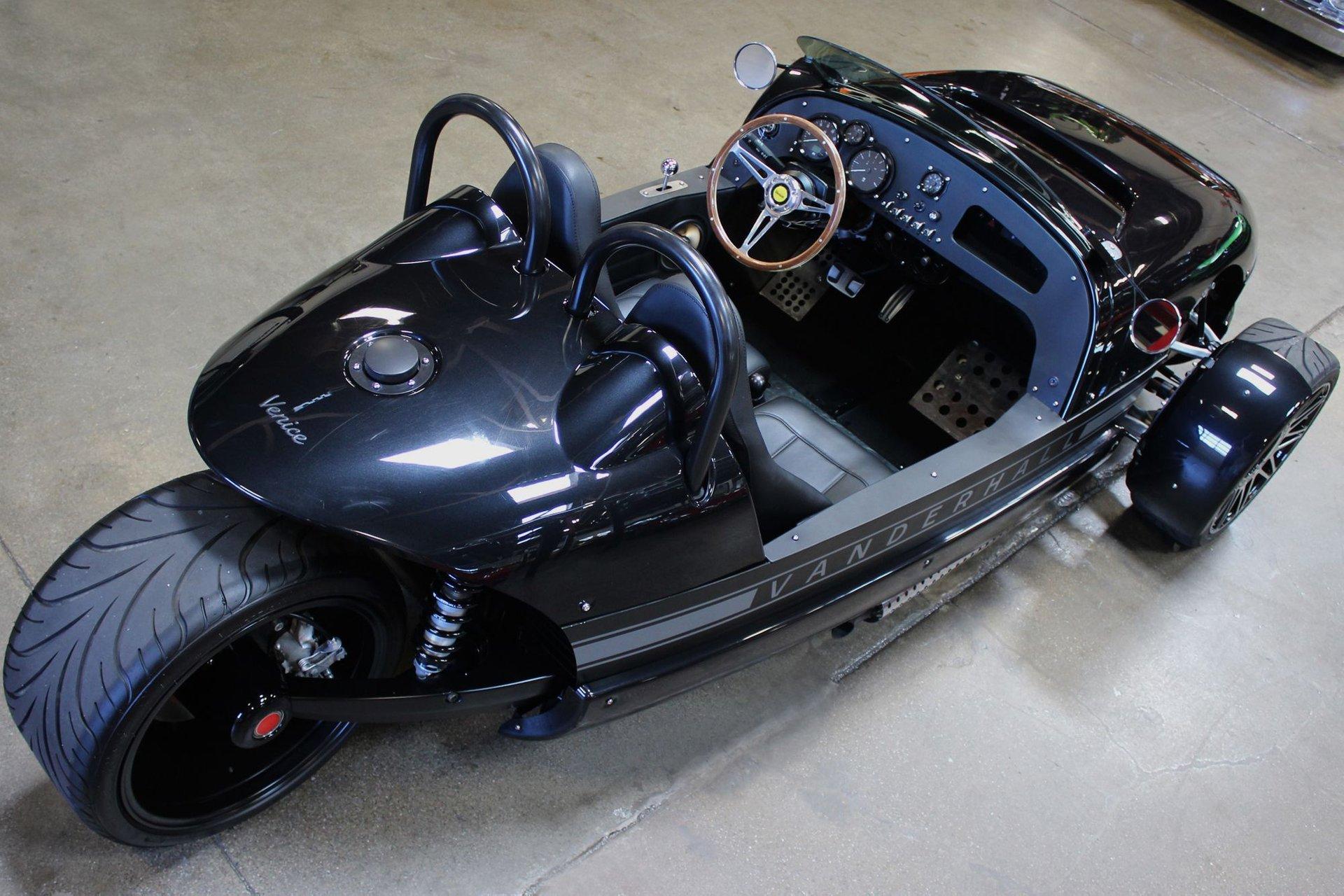

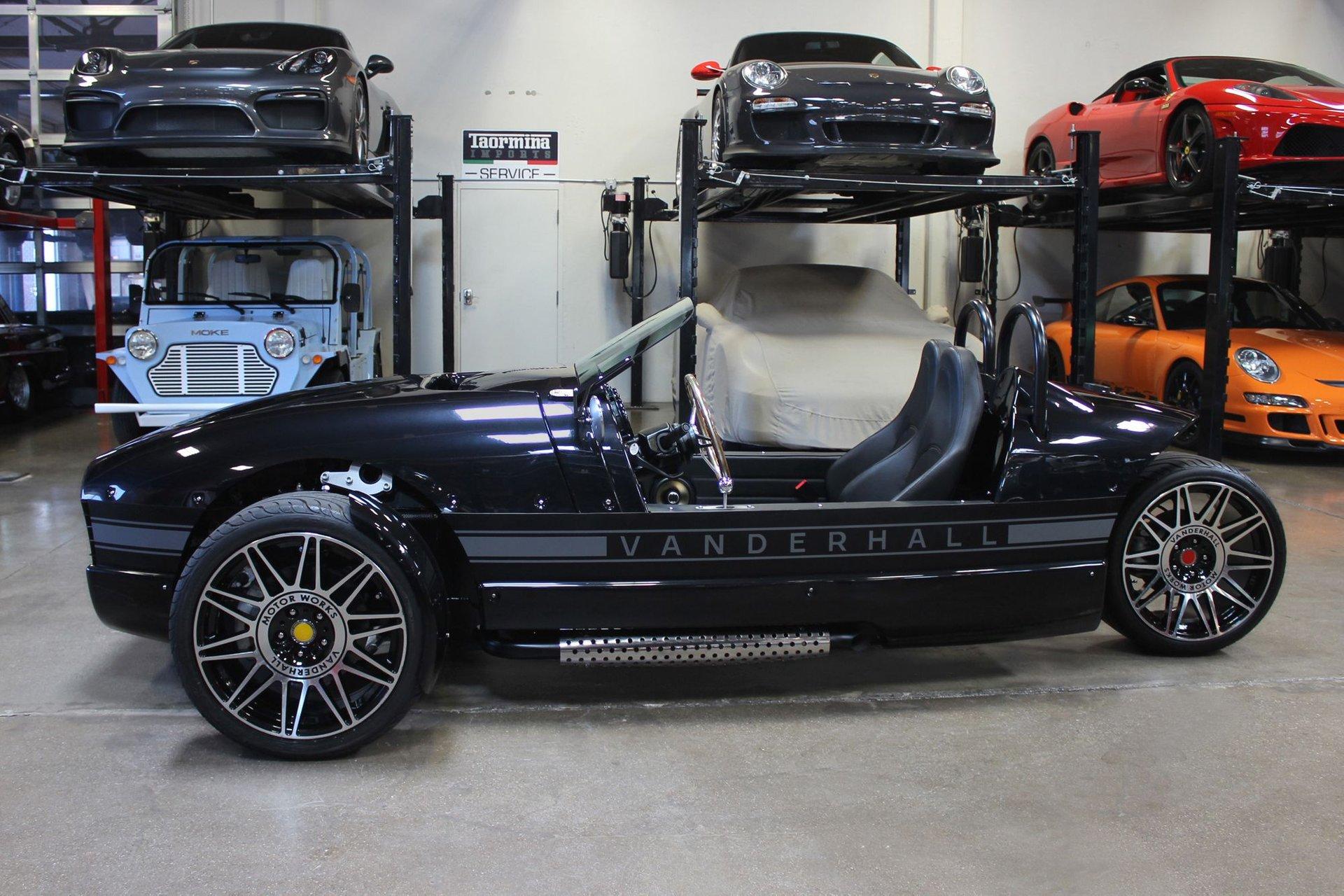

2017 Vanderhall Venice

Sale pending!

STANDARD EQUIPMENT

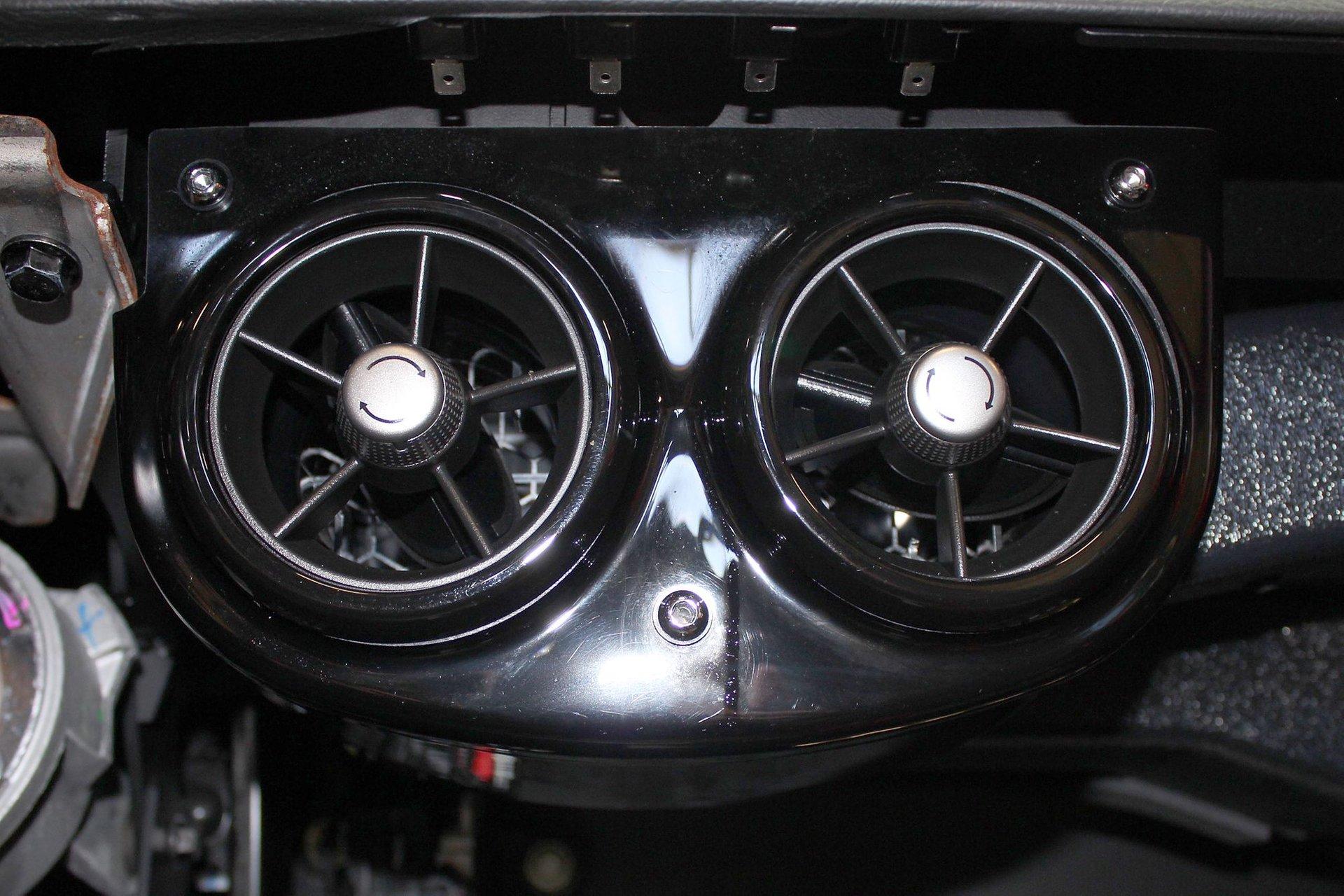

Convenience: Heated seats, dual-vent heating system
Safety: Dual servo-brakes with ABS, traction control, electric power steering, roll bar

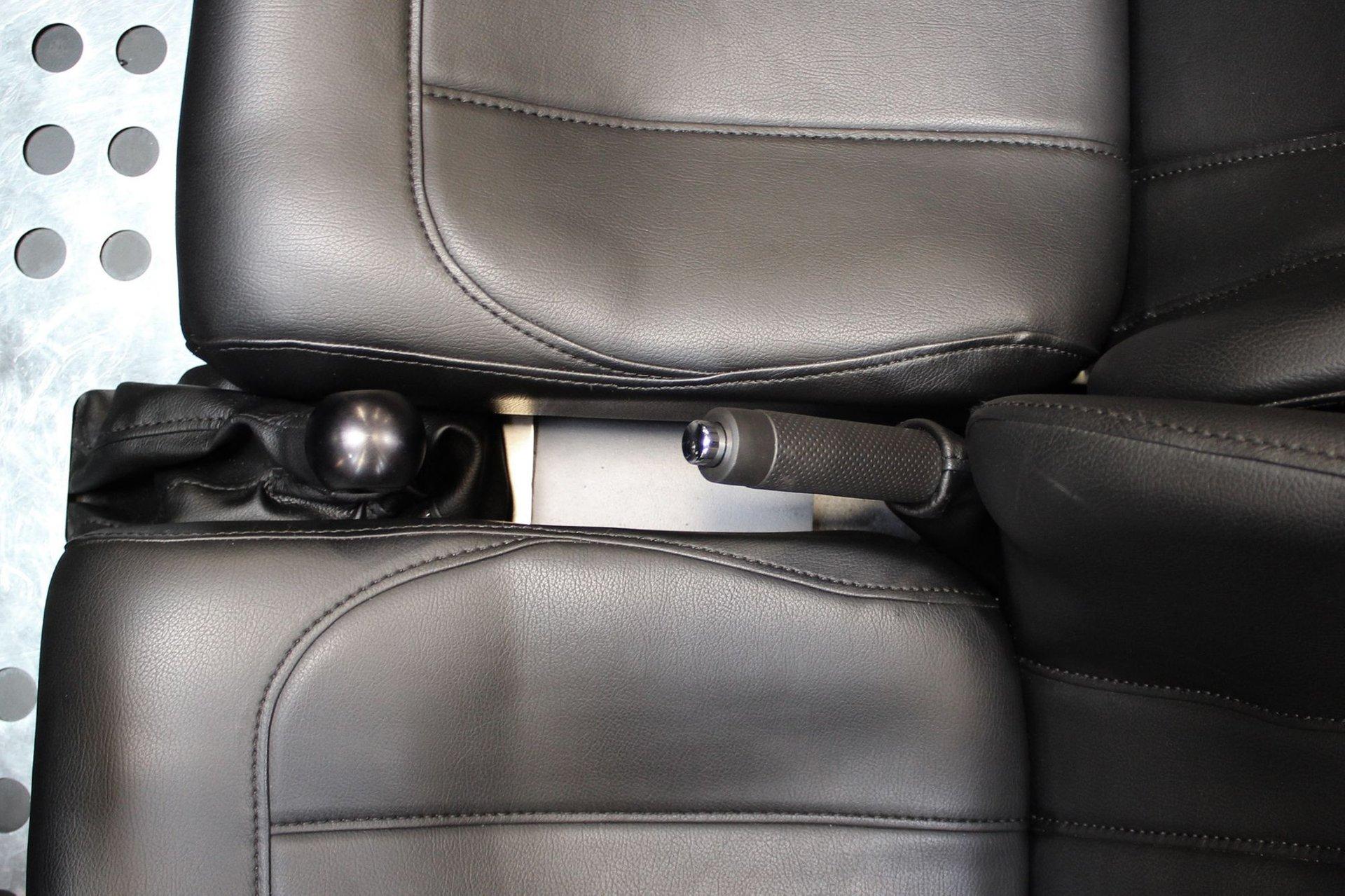

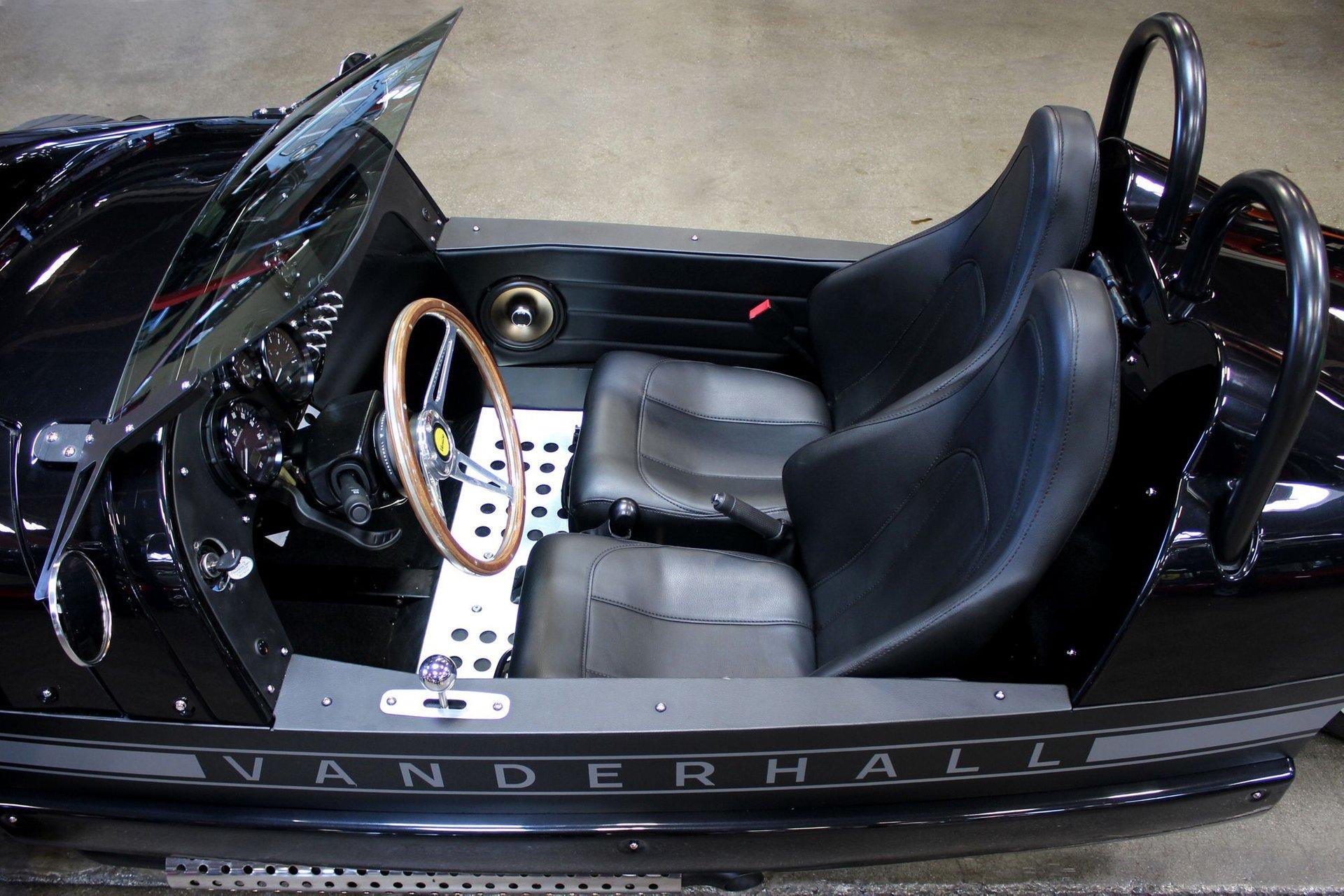

Interior Material: Black V-Tex synthetic upholstery

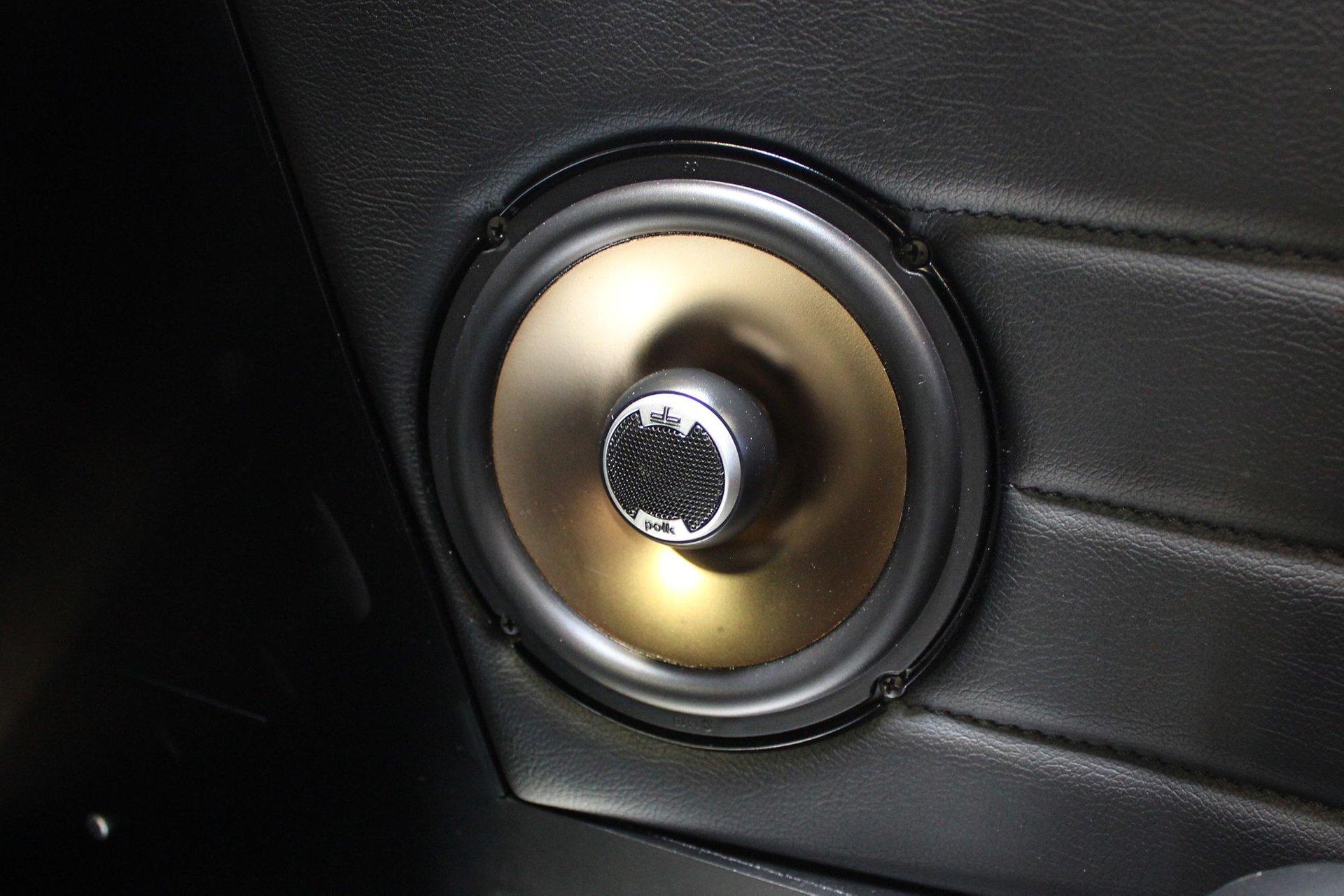

Audio: Bluetooth-connectable 400-watt sound system
Lighting: LED (headlights, turn signals, brake lights)

ENGINE
Location: Front
Alignment: Transverse
Manufacturer: General Motors
Engine Code: LUV
Cylinders: 4
Configuration: Inline
Displacement: 1.4 liters
Valves: 16
Bore x Stroke: 72.0 x 82.6mm
Bore Center: 78mm
Compression: 9.5:1
Cam Design: Hollow, cast iron
Redline: 6,500 rpm
Aspiration: Turbocharged
Compressor: Axial
Horsepower: 180 @ 4,950 rpm
Torque: 185 @ 2,450 rpm
Block: Cast iron
Sump Design: Wet
Fuel Supply: Multi-port injectors
Fuel: Premium unleaded
Catalytic converter: Yes

TRANSMISSION
Type: 6T40 (MH8)
Gears: 6
Wheel Drive: Front
Top Gear Ratio: .75
Clutch: Automatic torque converter
Final Gear Ratio: 3.87

PERFORMANCE†
0-60 mph: 4.5
Top Speed: 140 mph
Lateral Cornering Stability: .95
Power-to-Weight Ratio: 8.6:1

CHASSIS
Suspension, Front: Pushrod, coil-over hydraulic shocks (Vanderhall)

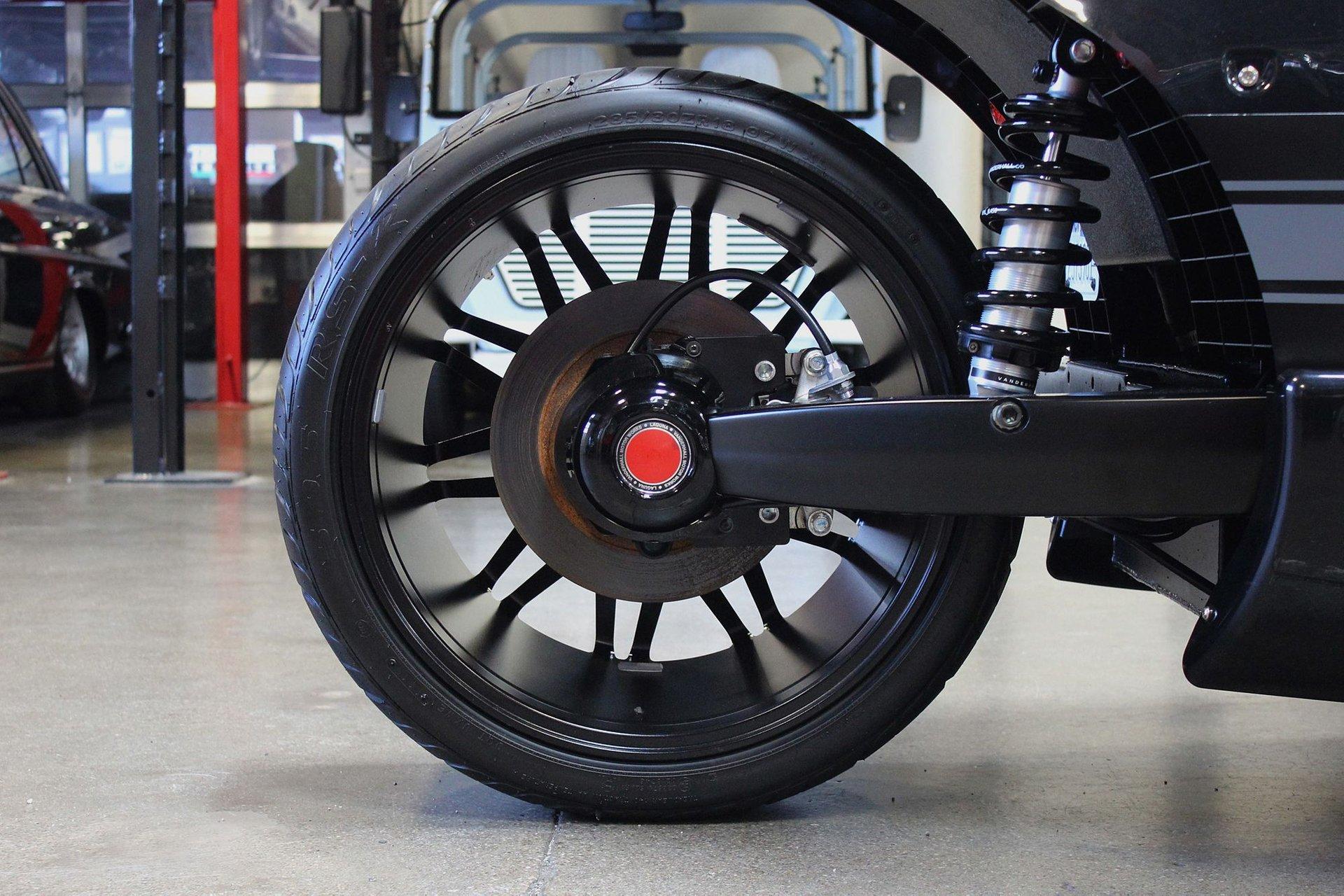

Suspension, Rear: Single-sided swingarm, coil-over hydraulic shock (Vanderhall)

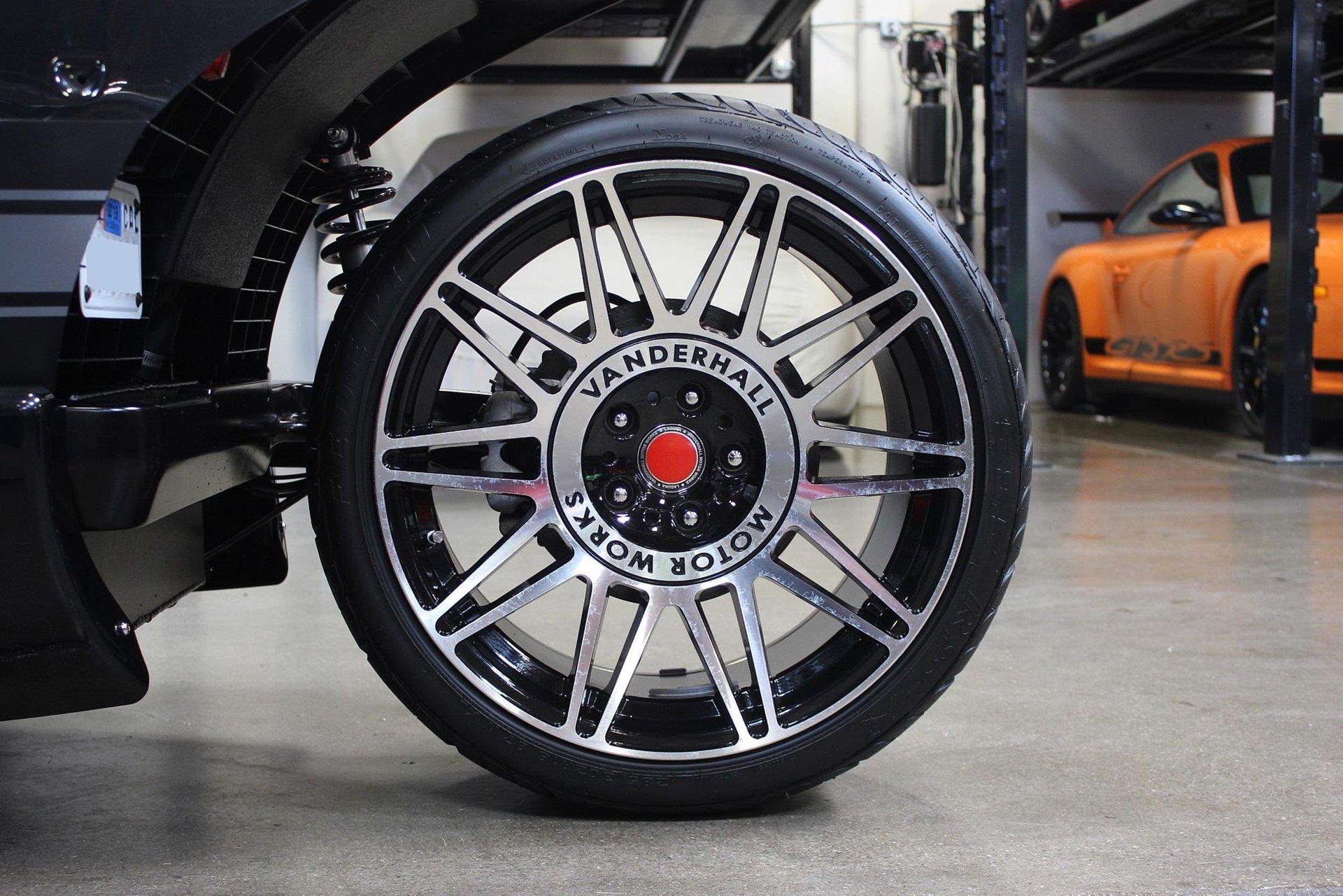

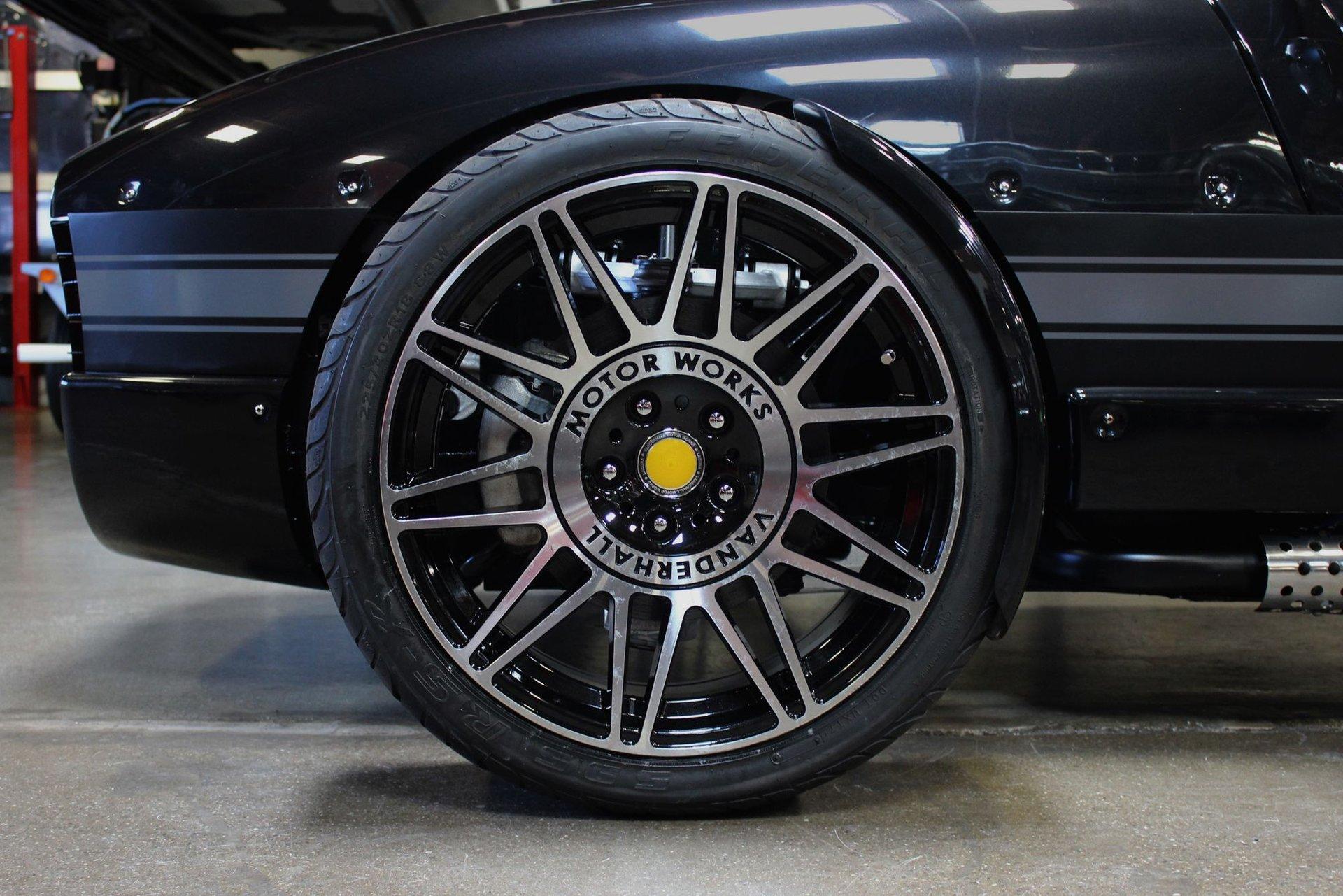

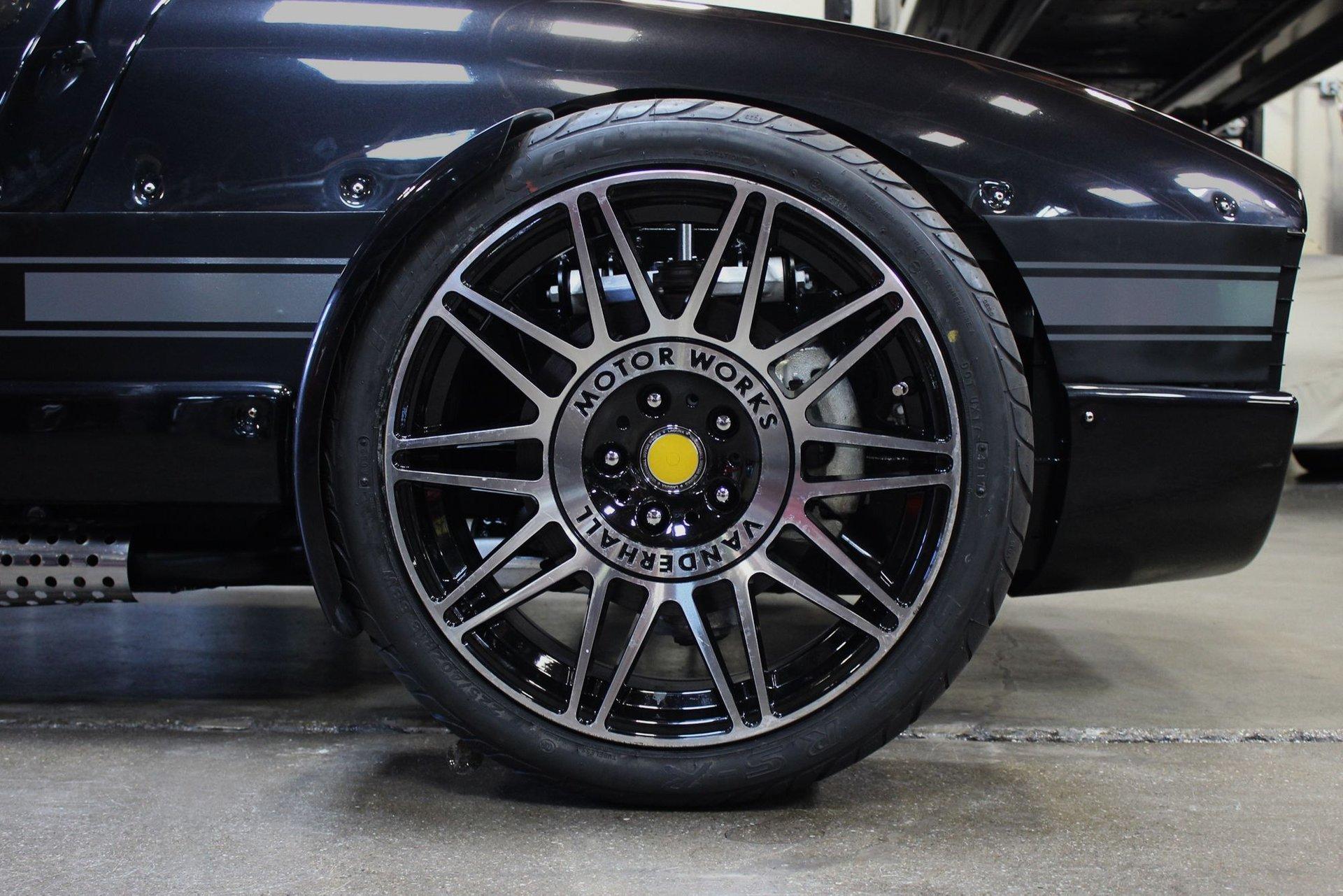

Base Wheels: 18x8.5 Front, 18x10.5 Rear
Base Tires: 225/40-18 Front, 285/35-18 Rear
Brake Calipers: Single piston
Brake Rotor, Front 305mm
Brake Rotor, Rear: 275mm

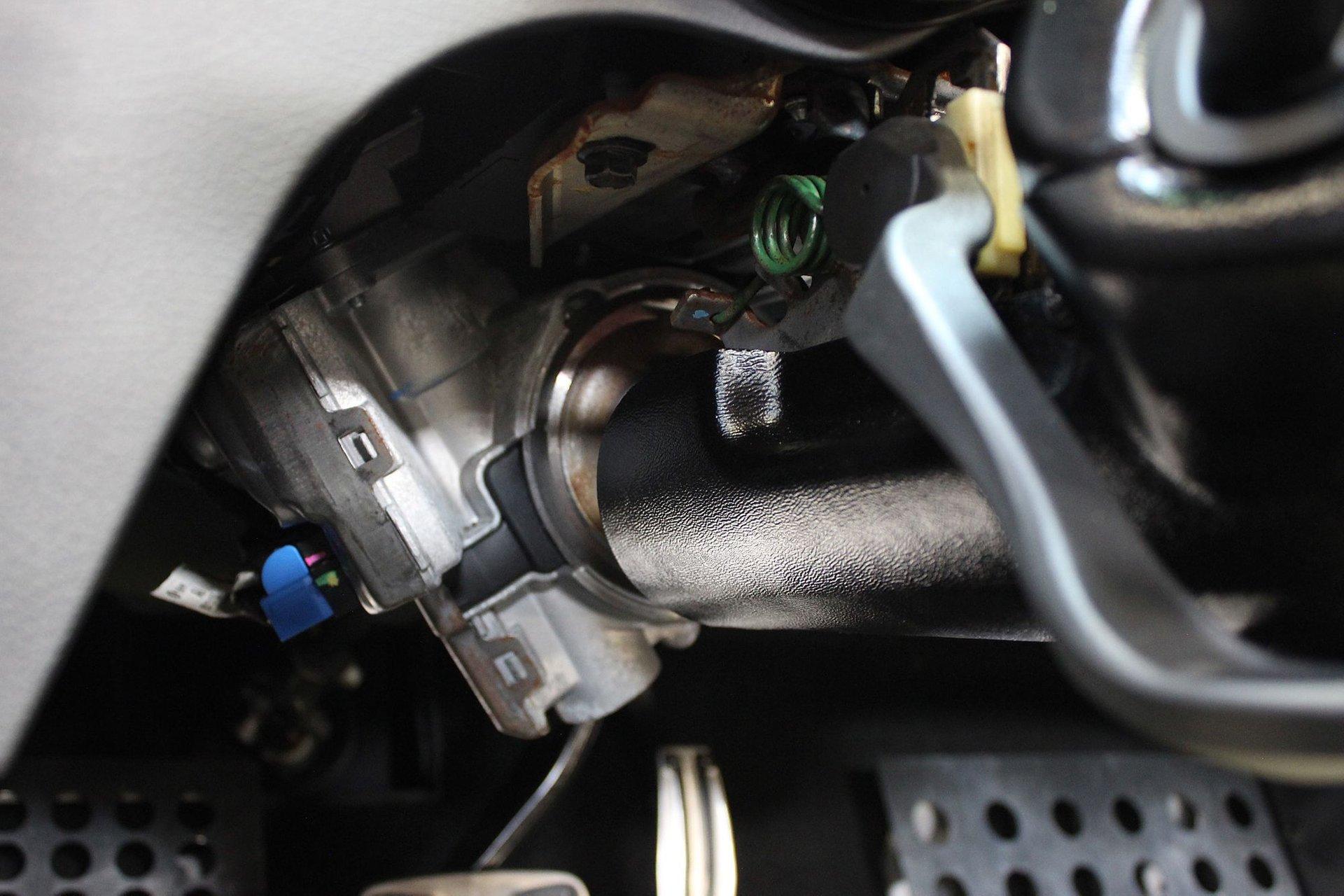

Steering: GM rack-and-pinion, electronic assist

BODY
Bodywork Designer: Vanderhall Design
Base Platform: Vanderhall Mono Aluminum
Bodywork Material: Composite
Cargo Capacity: 2,400 cu. in.

DIMENSIONS, WEIGHT & CAPACITIES
Length: 141 in.
Overall Width: 70 in.
Track, Front: 60 in.
Height: 44 in.
Wheelbase: 100.4 in.
Weight Distribution: 70/30
Ground Clearance: 4.5 in.
Dry Weight: 1,375 lbs.
Curb Weight: 1,450 lbs.
Load capacity: 500 lbs.
Gross Weight: 1,950 lbs.

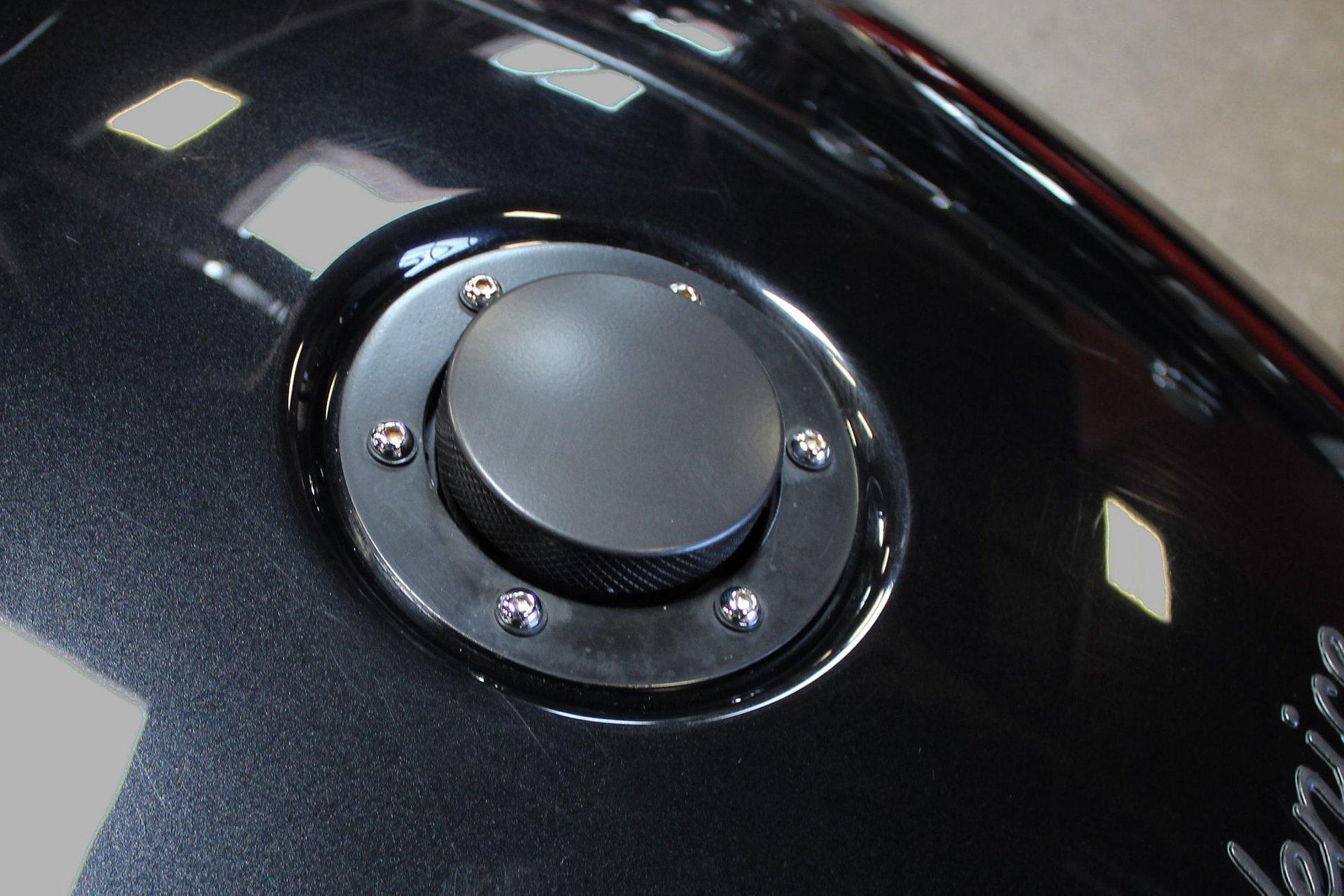

Fuel Capacity: 8.5 gal.
