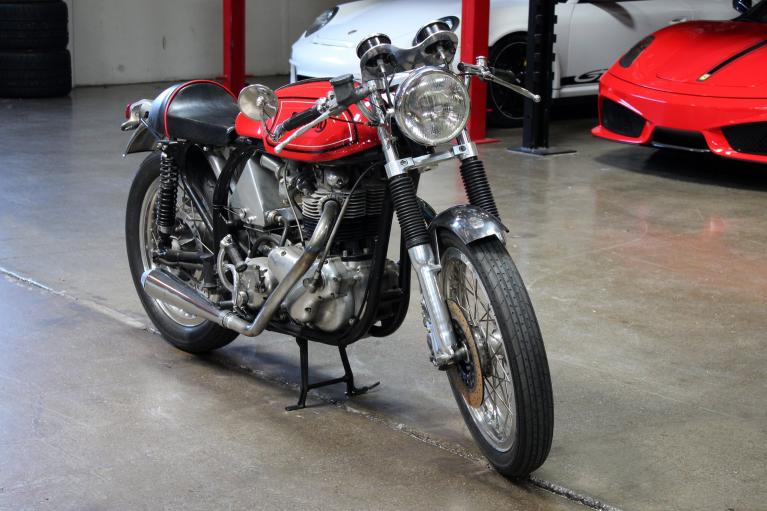

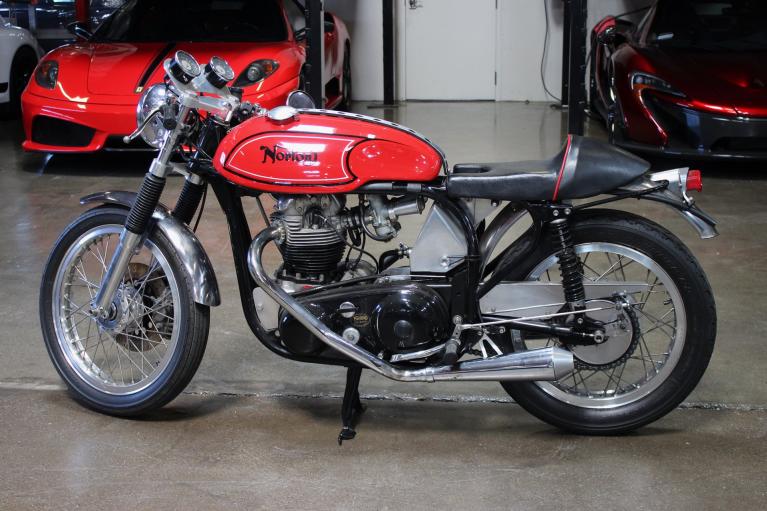

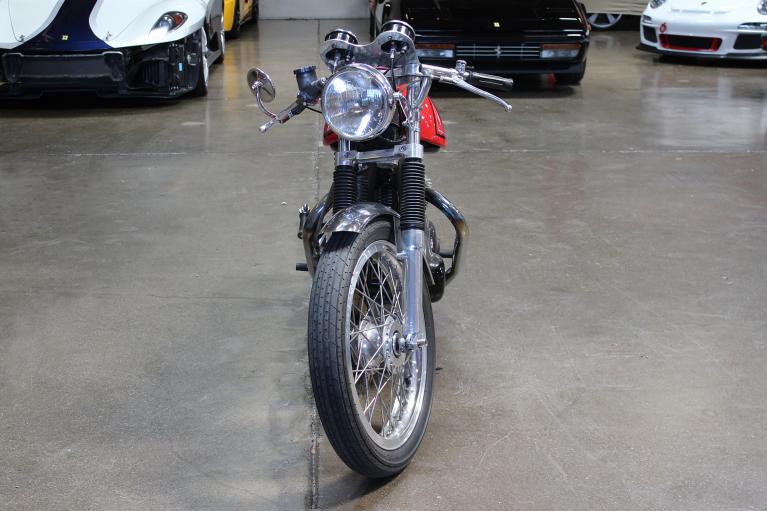

1966 Norton Atlas
Here is the build list for this very cool Norton hot rod -
745 cc engine dyno'd at 53 hp
6000 rpm redline
1972 Commando cylinder head
1972 Commander barrels - .020" overbore, 3/8" bolt holes and deeper flange
Modified cases - high flow oil feed, race bearings
745 Atlas crankshaft
Polished and shot peened 850 rods
Twin 32mm Mk II Amal carbs
oilways drilled to 3/8"
850 Commando oil pump
Alloy 850 push rods
Installed pressure feed to rocker arms
Rockers shimmed, lightened, polished, no springs
K2FC Competition Magneto
850 Transmission w/ Atlas main shaft
Barnett clutch
Geared for 130 mph. Bike has been ridden easily past 120
Late style Commando front forks & springs
Mulholland rear shocks w/ 80/100 springs
Alloy rims w/ stainless spokes, polished & lightened hubs
Lockheed front competition caliper, lightened and drilled front rotor
Commando rear drum
Polished and lightened hubs
Stainless axles & nuts
Lyta oil tank
Lyta 3 gallon gas tank
Powder coated frame and swing arm
